| Tyre Size | Pattern | Tread Depth (mm) |
Ply Rating | Rim Width (in) |
Section Width (mm) |
Overall Diameter (mm) |
Load Index / Speed Symbol | Load | Inflation Pressure (psi) |
|
| Single (Kg) |
Dual (Kg) |
|||||||||
| 9.00R20 | TS-702 | 15 | 16 | 7 | 260 | 1018 | 144/142K | 2800 | 2650 | 130 |
| 10.00R20 | TS-702 | 16 | 16 | 7.5 | 278 | 1054 | 146/143K | 3000 | 2725 | 120 |
| 11.00R20 | TS-702 | 17 | 16 | 8 | 288 | 1085 | 150/147K | 3350 | 3075 | 120 |

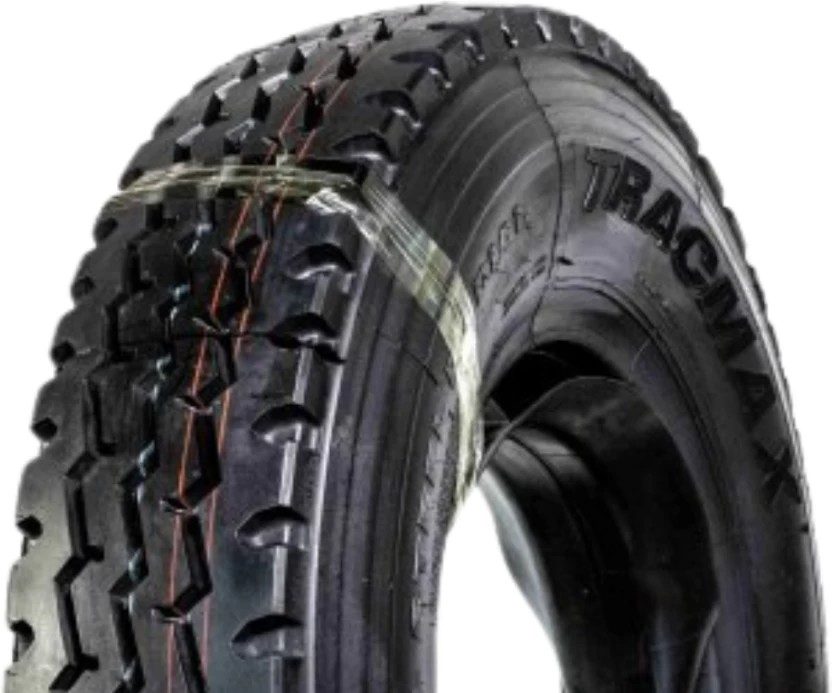

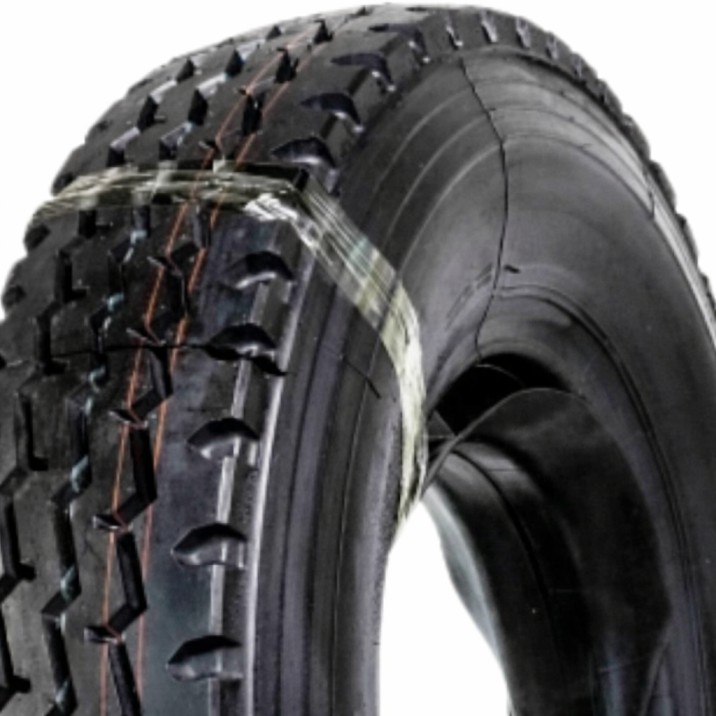

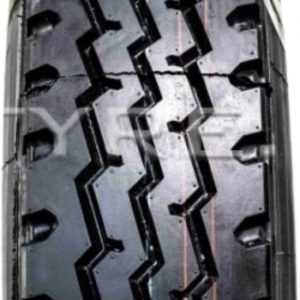

AB101
TYRE SPECIFICATION
- Unique breaker belt structure built-in high and excellent tread pattern design to give higher initial tyre life.
- Unisteel casing and bead design for heavy duty and also for high speed application.
- Better traction with low heat build-up delivers longer tyre life.
- Deep tread design ensures reliable control and extended tread life.
- Self-clean tread with high traction, featuring wide and deep tread grooves.
- Stone rejector design enhances durability and protects the casing.
- Aggressive tread pattern provides a firm grip in rain, mud, and snow.
